AIRbox Race XL (PX, Rally GS Sprint..)

Beschreibung

AIRbox Race XL Technical Specifications:

• The AIRbox XL is compatible with PX and all older 10″ chassis models. A plug for access to the idle adjustment screw is included.

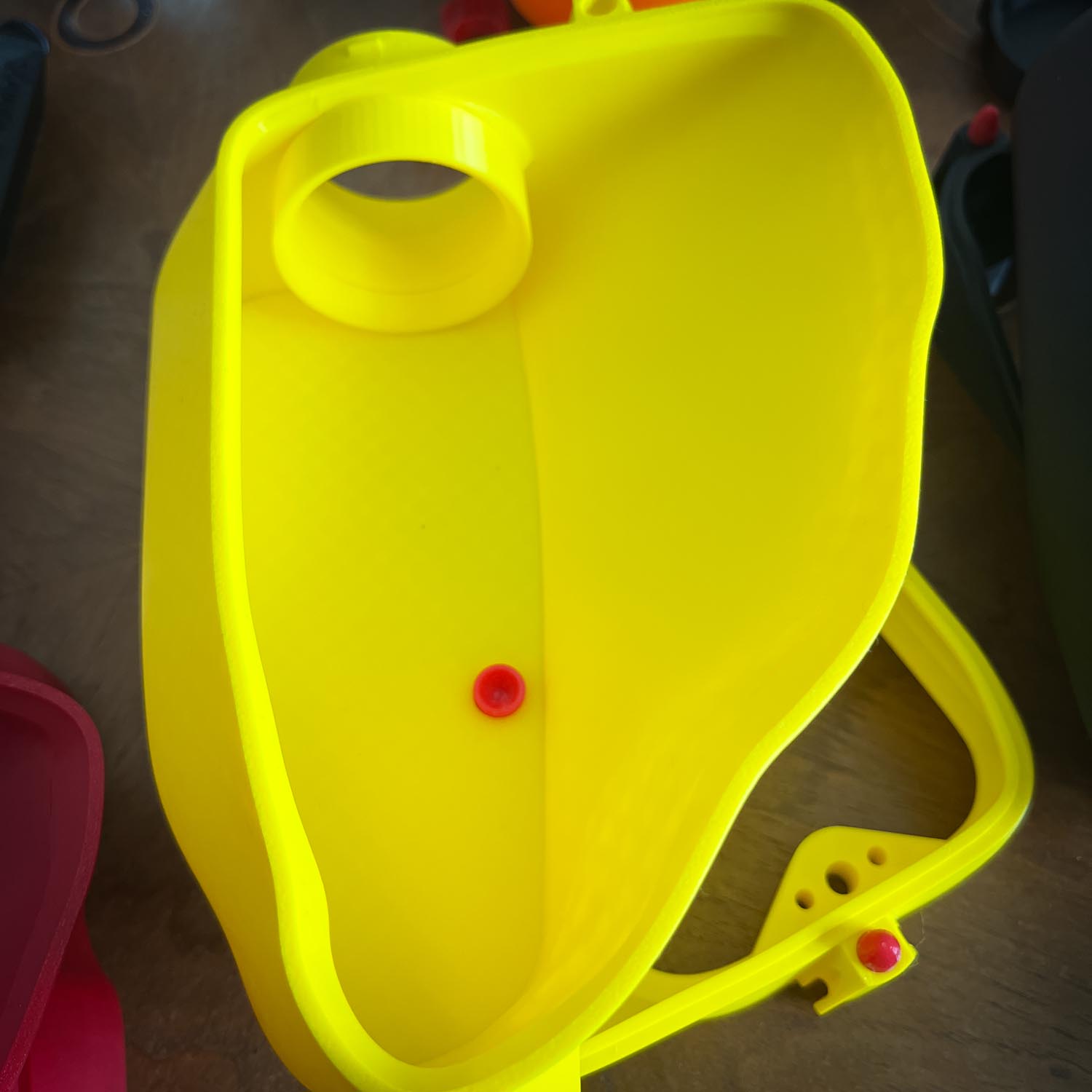

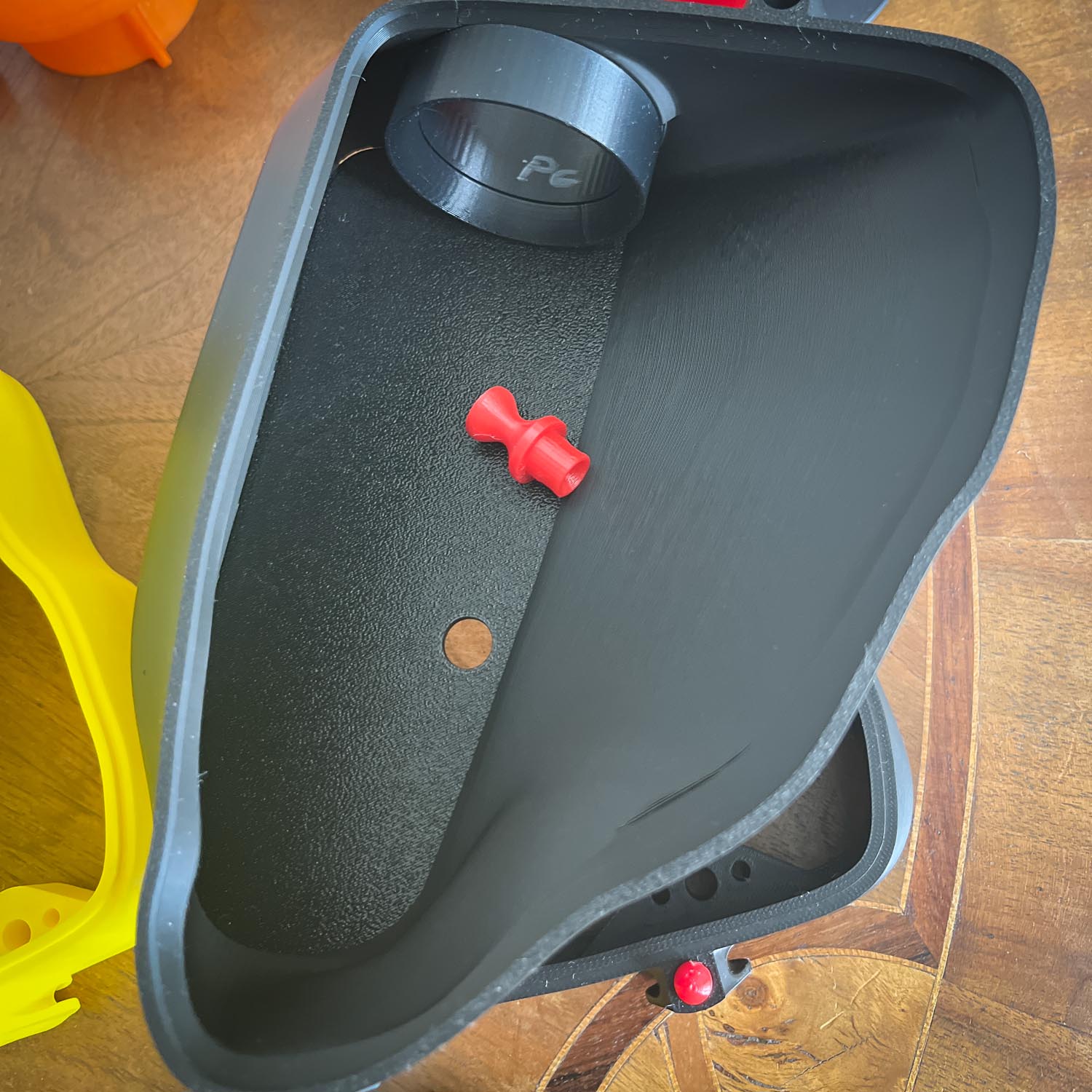

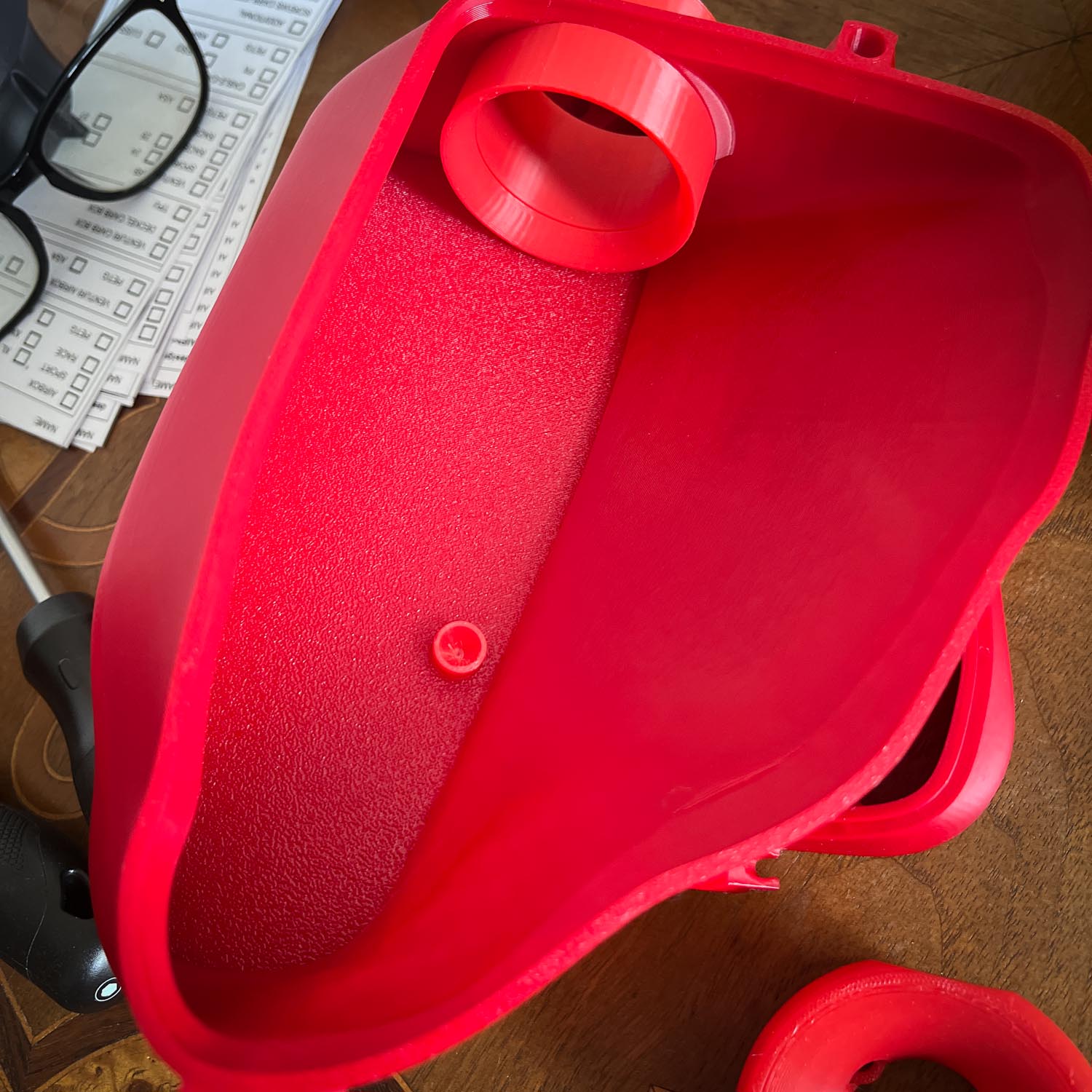

• Two–piece housing for optimal accessibility, easy installation, and the use of asymmetrically shaped Venturi.
• By avoiding parallel walls and significantly reducing flat surfaces, the AIRbox is designed to minimize internal reflections and standing waves. This reduces undesired fuel mixture enrichment caused by repeated flow through the jet stack. The result: easier tuning, improved throttle response, and better torque performance
• Equipped with a 44 mm intake opening for additional airflow via the large 69 mm AIRbox venturi
• All connection interfaces feature bayonet locks—no screws or cable ties required
• Installation of the lower section is done without the original rubber gasket
• The AIRbox lower section is mounted to the carburetor tray using the included M5 flat-head screws and nitrile rubber washers
• Precise alignment of the upper and lower parts is ensured by elastic positioning pins and a sealing edge
• The upper section is secured using the included 4.5 mm elastic bands
• Wall thickness up to 5mm at exposed areas to improve strength.
• Thick-walled design for increased sound dampening.
• Optional 66mm AIRbox Venturi with additional mountable filter frame available

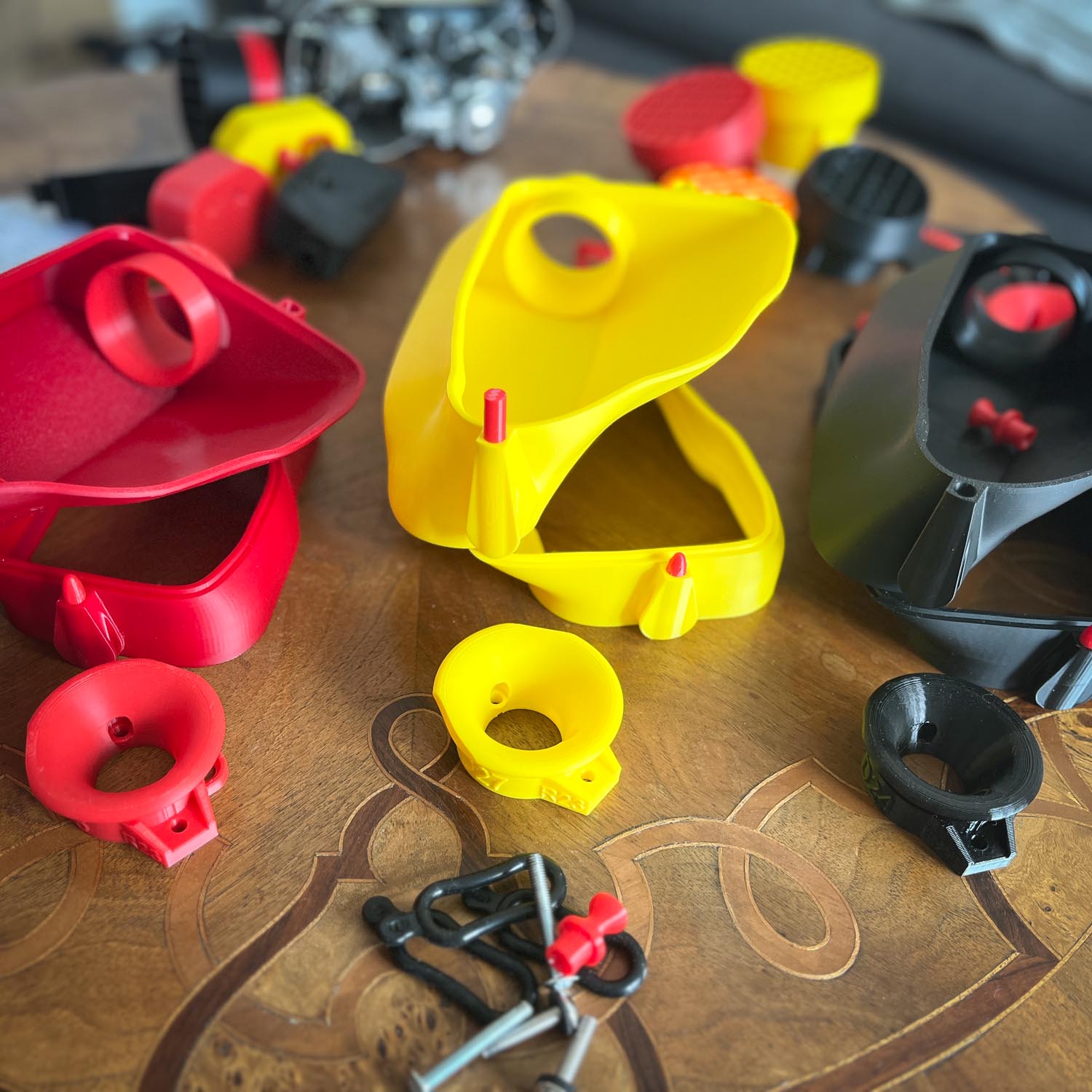

• Screws, rubber bands, and connection pins are included.(In the Lusso1 set, the matching cable box is also included.)
